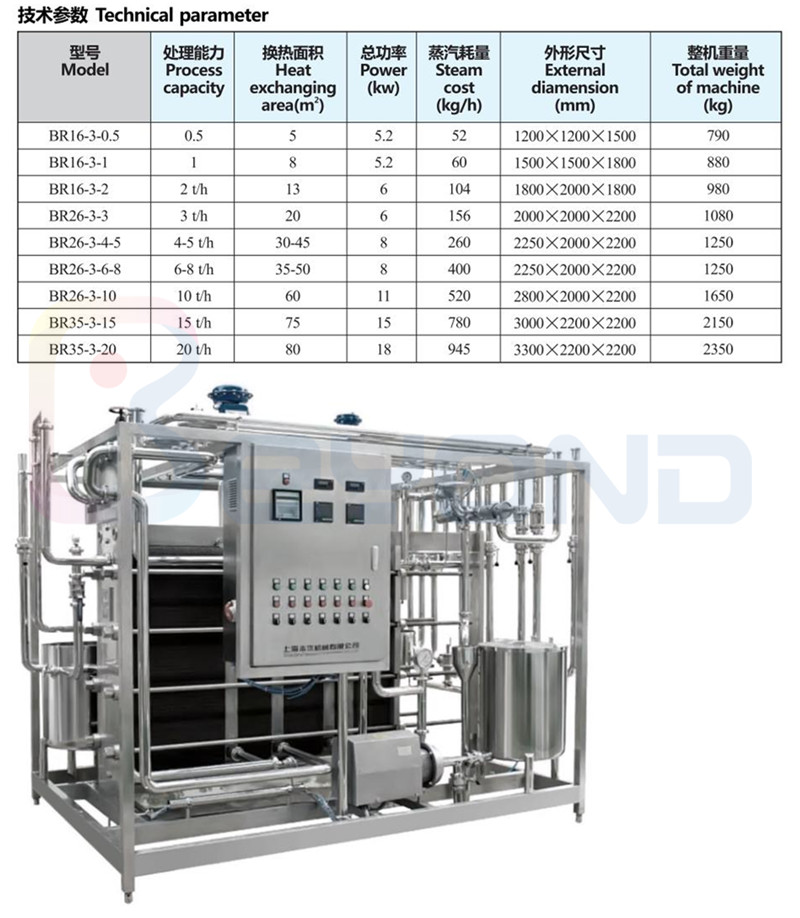

板式巴氏殺菌 Plate pasteurizer

板式巴氏殺菌(三段式)Plate pasteurizer(3 sections)


巴氏殺菌機組的工藝參數:5℃→65C(均質)→85~95℃(15S)→5℃

Technical parametre:5℃→65℃(homogenization)→85-95℃(15S)→5℃


本設備適用于鮮奶、果汁飲料、酒類等熱敏性液體的加熱、殺菌、保溫和冷卻等工藝要求。本設備具有熱回收高,節能降耗,結構緊湊,操作簡單,維護方便等特點。

This unit can be connect with separator,homogenizer,flash evaporator&degasser ect.this unit is used as Pasteurizer(widely used in fresh milk,milk beverage,juice,tea,alcohol,ice cream ect.),and also pre-sterilize material when producing Pasteurized milk(long life milk).


機組可連接分離機、均質機、閃蒸脫氣等設備。本機組通常用來對物料作巴氏殺菌(包括鮮奶、乳飲料、果汁、茶汁等各類飲料,各種酒類和冰淇淋料等),也可以在生產滅菌奶(長效奶)時對原料進行預殺菌。

This machine has features of high heat recovery,lower energy cost,strict design on the construction and easy operation,simple maintenance.


控制方式:

全自動控制(PLC,觸摸屏顯示)半自動(PID智能儀表)設備主要配置:

A.板式換熱器

B.物料平衡桶

C.熱水系統

D.進口熱水泵

E.物料輸送泵

F.電氣控制系統

G.溫度控制及記錄儀

H.不銹鋼管路閥門等。


Control type: Full-automatic control(PLC with touch screen), Semi automatic PID Control.Standard attachments:

A. Plate heat exchanger;

B. Material-balance bucket;

C. Hot water-balance drum;

D. Hot water pump;

E. Product pump;

F. Steam & water mixer;

G. Electricity box;

H. Stainless steel pipes and valves etc;

I.PLC and color touch screen;


處理能力:500L-20T/H

Production capacity:500L-20T/H
