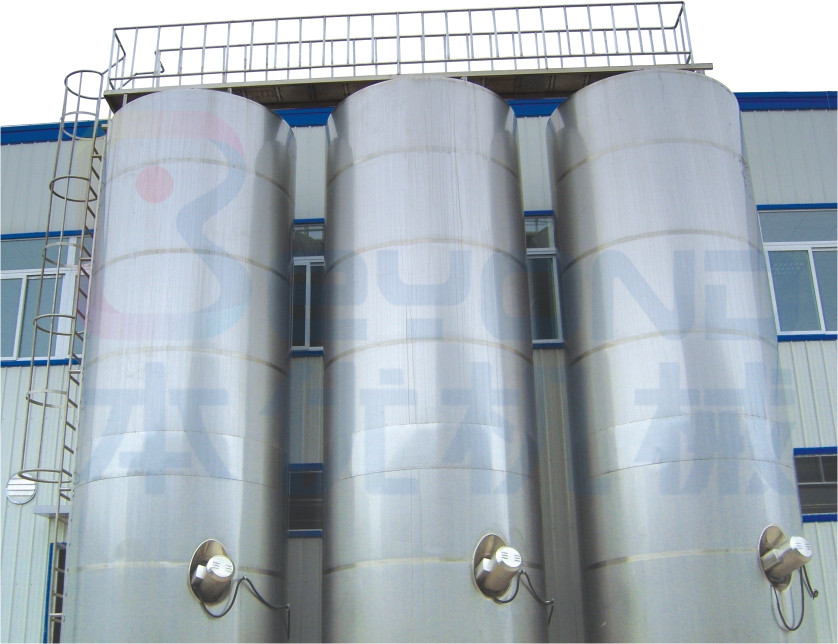

大型室外奶倉 Large Out Door Storage Tank
功能用途 Application
適用于大型奶站或乳品廠貯存冷卻的鮮乳，也可以供其它食品、制藥廠貯存液體物料，本設備配有洗滌系統，攪拌系統，照明及透視裝置，溫度指示儀表及液位指示儀表。
Applicable for large milk collection centre，or for milk outdoor storage at large milk production plant；also used at other food and pharmacy factory for storage of liquid product.This equipment is equipped with cleaning system，agitator，sight and view devices，also have attachments of thermometer and level indication meter.

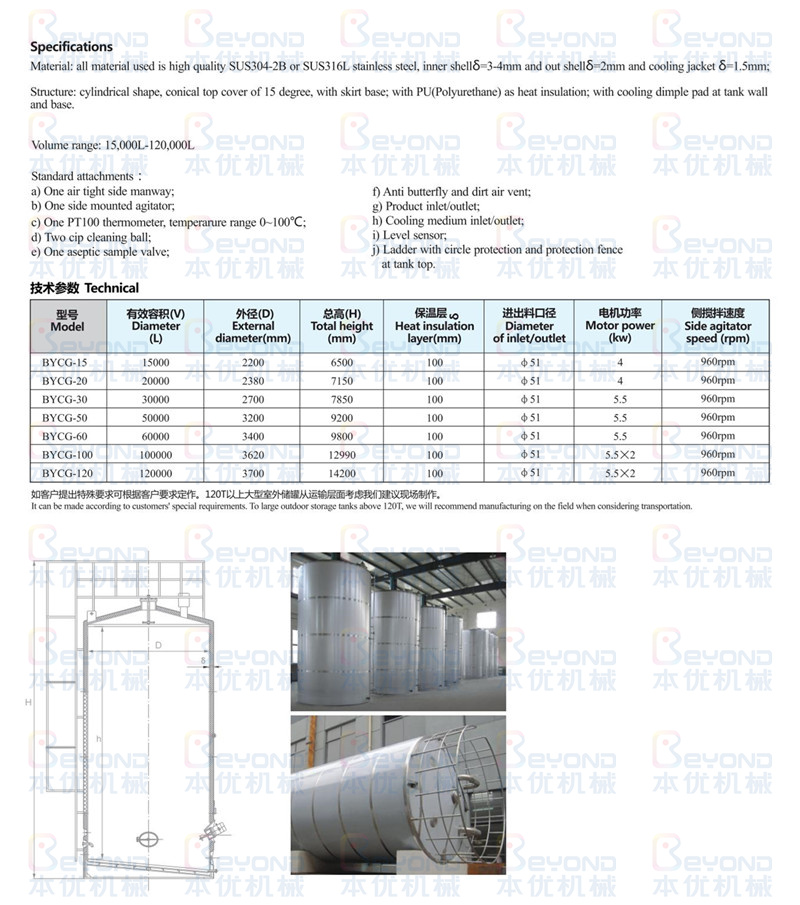

技術說明 Specifications
材質：全部采用優質SUS304-2B或SUS316L不銹鋼，內膽6=3-4mm，外包6=2mm；夾套6=1.5mm；
Material: all material used is high quality SUS304-2B or SUS316L stainless steel, inner shell8=3-4mm and out shel6=2mm and cooling jacket =1.5mm;
結構特征：圓柱形筒體，錐形封頭，錐頂15°，底部為裙座；PU聚氨酯發泡保溫；筒身和底部蜂窩式冷卻夾套；
容量范圍：15，000L-120，000L
Structure: cylindrical shape, conical top cover of 15 degree, with skirt base; with PU(Polyurethane) as heat insulation; with cooling dimple pad at tank wall and base.
Volume range:15,000L-120,000L
標準配置：
Standard attachments:
1、1個罐體底部密閉型側人孔；One air tight side manway;
2、1個罐體底部側攪拌（960rpm）；One side mounted agitator；
3、1個PT100數顯溫度計，溫度顯示范圍0~100℃；One PT100 thermometer, temperarure range 0-100℃
4、2只CIP清洗球；Two cip cleaning ball;
5、1個無菌取樣閥；One aseptic sample valve;
6、防蠅防蟲透氣帽；Anti buterfly and dirt air vent;
7、物料進/出口；Product inlet/outlet;
8、冷卻介質進/出口；Cooling medium inlet/outlet;
9、液位傳感器Level sensor;
10、帶護欄爬梯和罐體頂部護欄。Ladder with circle protection and protection fence at tank top.
